XTR Awning Mount Upright Sub-structureXTR Awning Mount Upright Sub-structure
XTR Awning Mount Upright Sub-structureXTR Awning Mount Upright Sub-structure
XTR Awning Mount Upright Sub-structureXTR Awning Mount Upright Sub-structure
XTR Awning Mount Upright Sub-structureXTR Awning Mount Upright Sub-structure
XTR Awning Mount Upright Sub-structureXTR Awning Mount Upright Sub-structure
$145.00

Estimated Lead Time: 2-3 Weeks

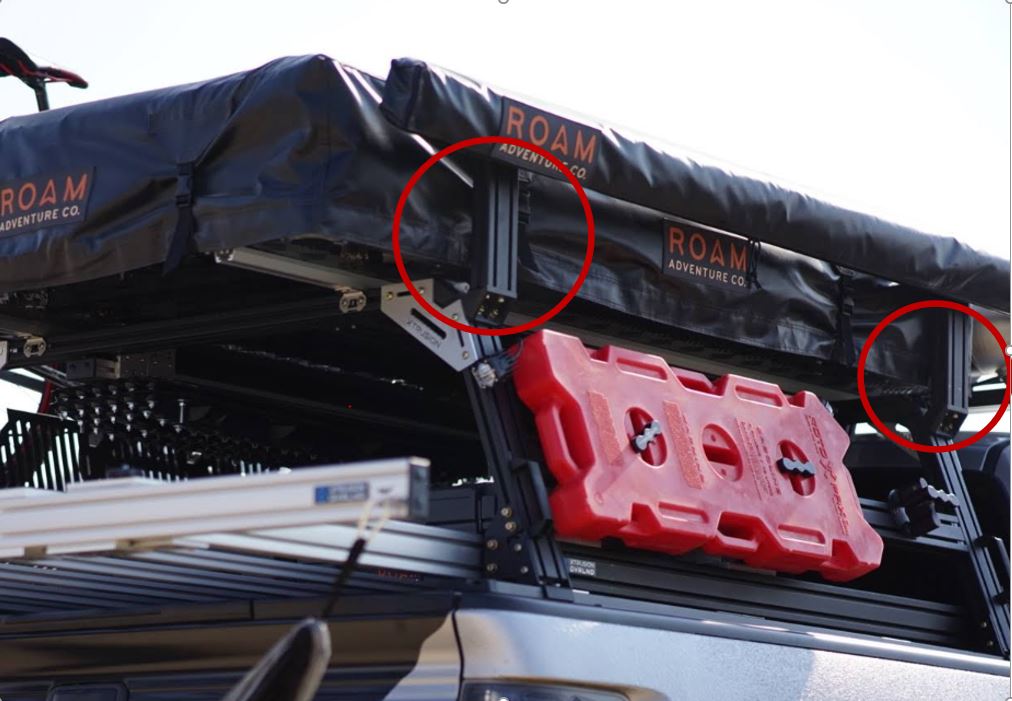

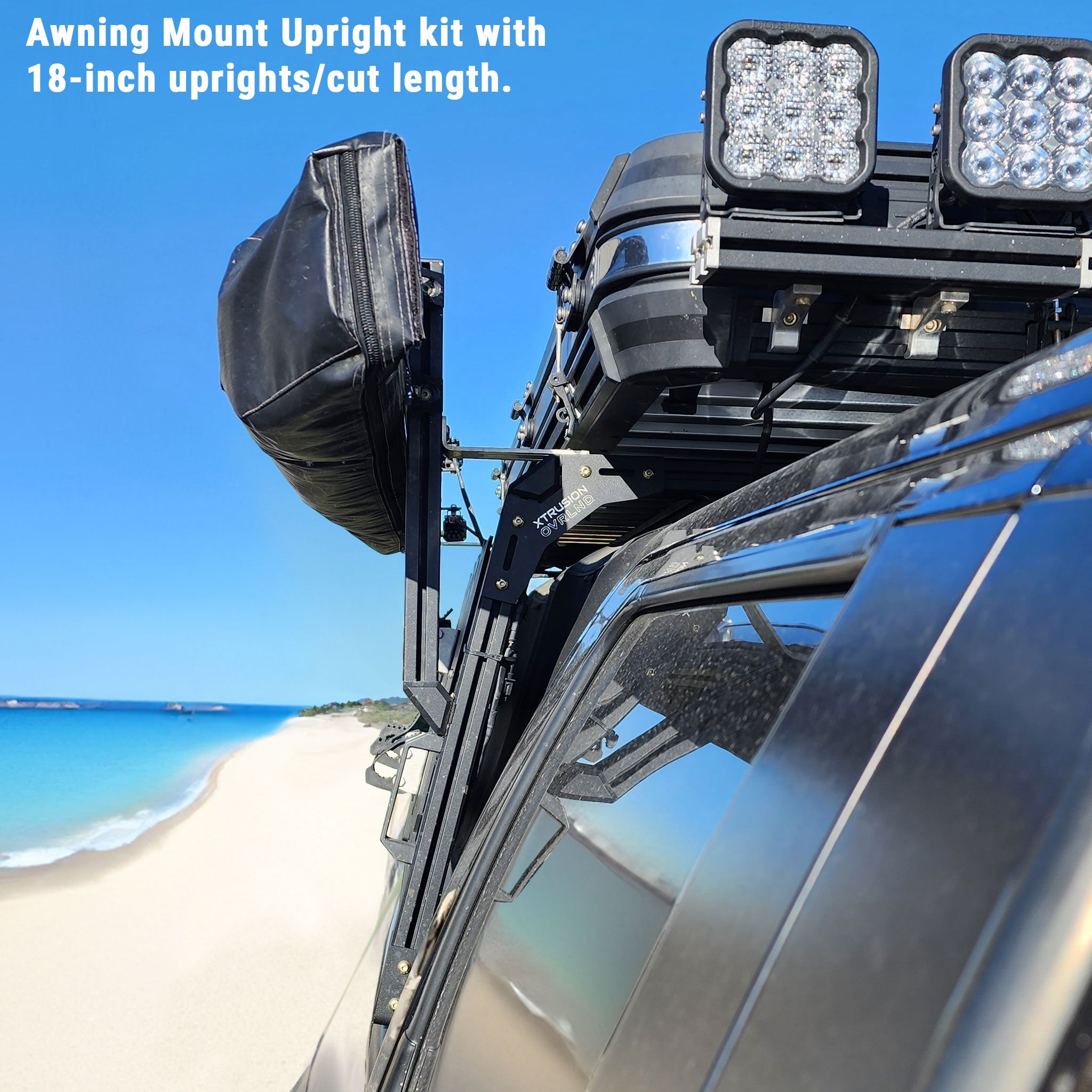

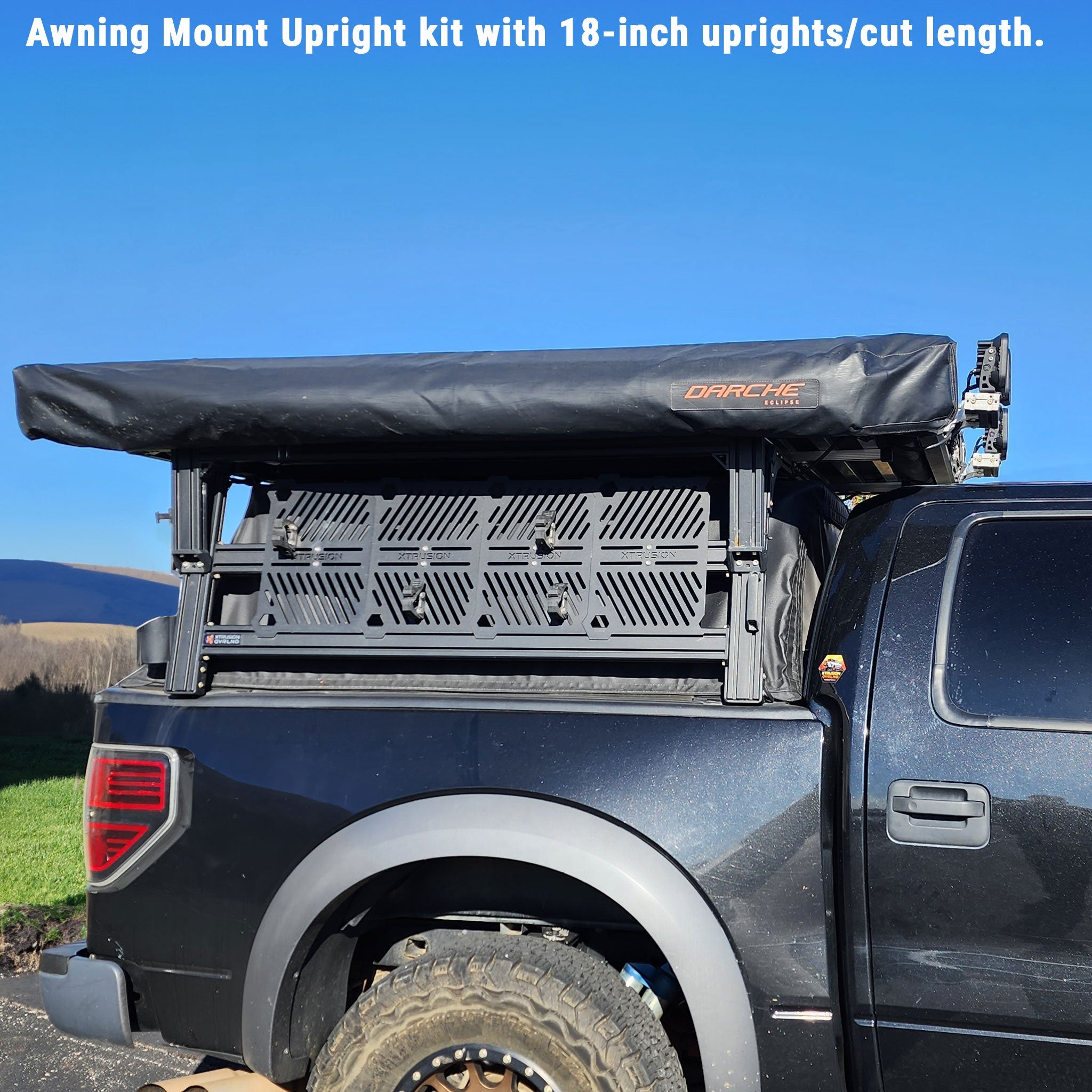

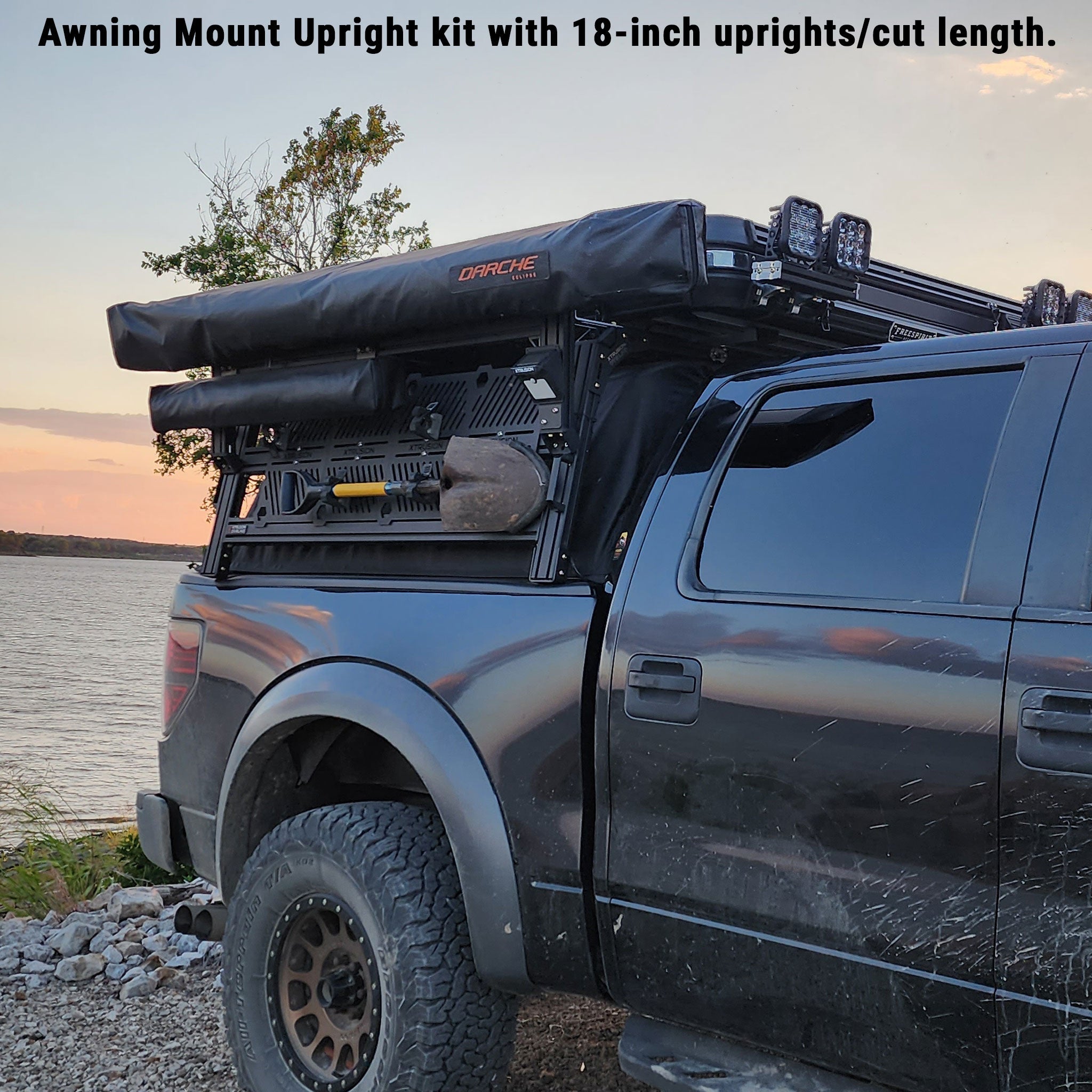

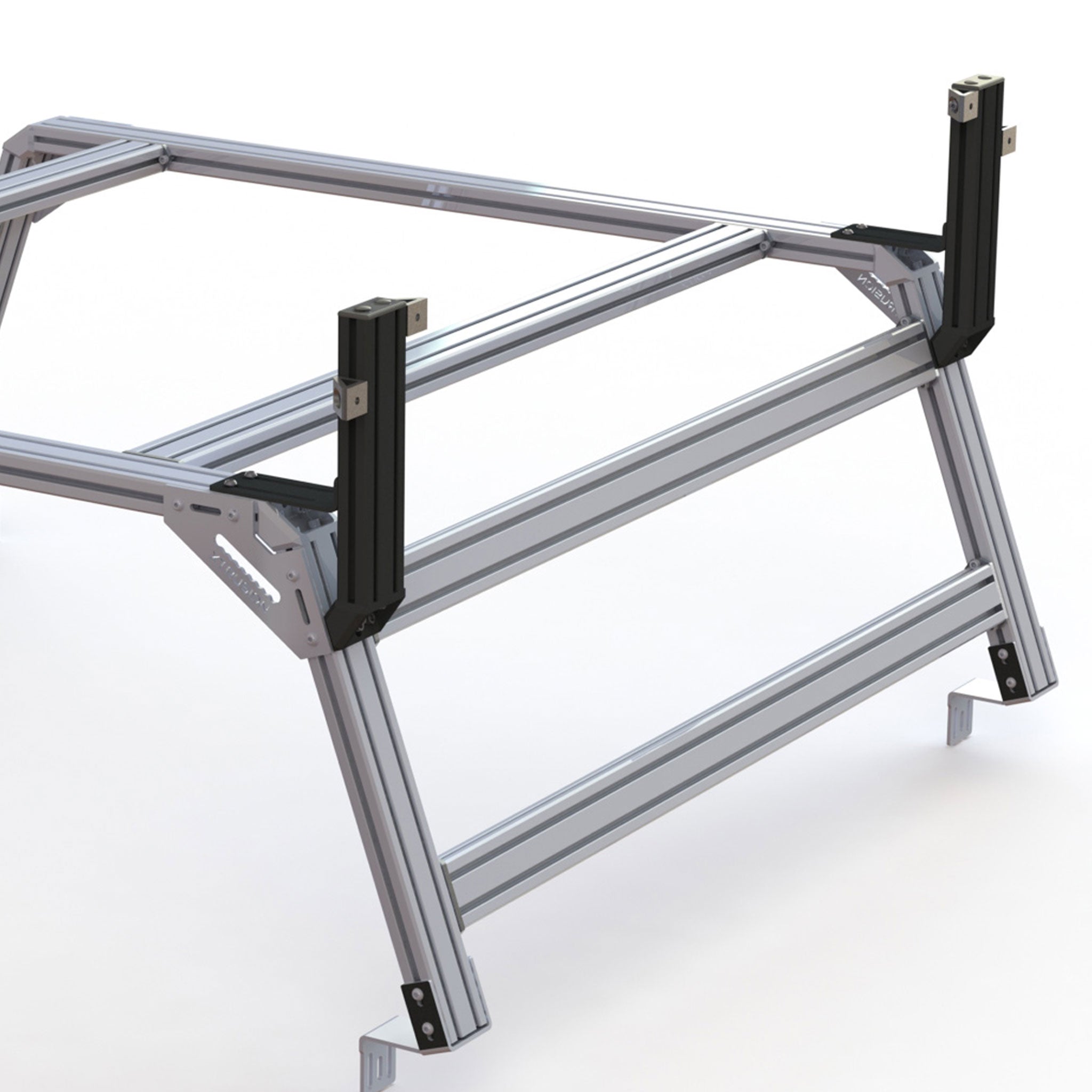

This kit will allow you to mount any awning with their provided hardware directly into the uprights of XTR1 bedrack at different heights and with adjustability.

What's Included:

  • 2 Corner Brackets (need to select according to your bedrack version of 9D for Gladiators, 13.3D for Softoppers and 20D for standard bedracks)
  • 2 sections of 1530H Extrusion powdercoated black. Select between 8" and 12" in height.
  • 4 corner gussets that allow you to mount the awning straight into the extrusion T-Slot's
  • 2 caps for the extrusion top ends.
  • All required hardware.
  • (Supports up to 60 lbs when mounted on uprights directly.)
  • Upright braces (These will add additional support for the heavier 270 type of awnings. Weight limit of 100lbs with added brace).
